H05RN-F 2x0.75 mm²
Article number:
319010205
Description

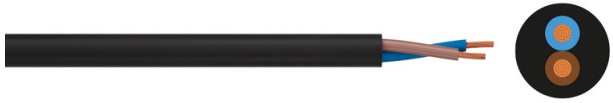

Rubber insulated control cable
- Number of conductor: 2.
- Conductor diameters: 0,75mm².
- Outer cable diameters: 6,2mm.
- Conductor: flexible bare copper.
- Insulation: rubber (EPR) EI4.
- Outer sheath: rubber (CR) EM2.
- Maximum temperature at conductor: 60°C.
- Rated temperature fixed installation: -25°C to 60°C.
- Flame retardent acoording to IEC 60332-1-2.
- Application: for the connection of electrical appliances with low mechanical stress in household, kitchen, office.
- NOT for permanent outdoor use.
- Number of conductor: 2.
- Conductor diameters: 0,75mm².
- Outer cable diameters: 6,2mm.
- Conductor: flexible bare copper.
- Insulation: rubber (EPR) EI4.
- Outer sheath: rubber (CR) EM2.
- Maximum temperature at conductor: 60°C.
- Rated temperature fixed installation: -25°C to 60°C.
- Flame retardent acoording to IEC 60332-1-2.
- Application: for the connection of electrical appliances with low mechanical stress in household, kitchen, office.
- NOT for permanent outdoor use.
